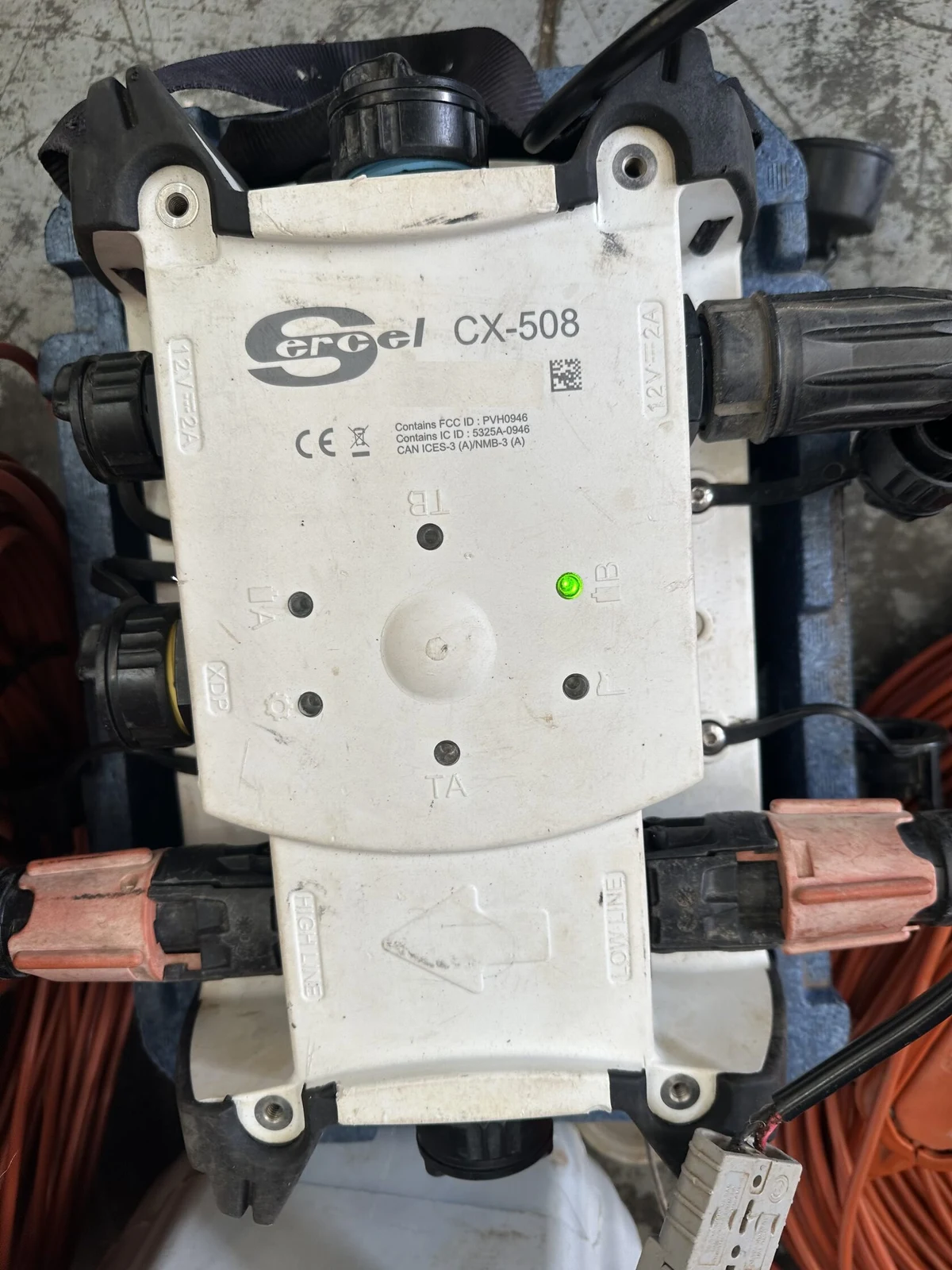

Sercel CX-508 Concentrator for 508XT Systems
- Clock and power supply: feeds the connected FDU and DSU units
- Local data storage: 32 GB memory in the unit
- Reliable transmission: data is sent to the central unit with error recovery
- High channel capacity: up to 2,400 channels per line and up to 100,000 channels per transverse at 2 ms in real time
- Fast transverse: 1 Gbps transverse data rate
- Low power consumption: 3 W on the line, 7 W with transverse
- Rugged onshore design: built for land operations, operates from −40 to +70 °C, waterproof up to 15 m
- Full 508XT compatibility: designed for the Sercel 508XT system
| Category | Land Equipment |
| Brand | Sercel |
| Location | Jebel Ali – Dubai - UAE |
| Price | On request |
What Is the Sercel CX-508?
The Sercel CX-508 is a field concentrator of the Sercel 508XT seismic acquisition system. It supplies clock and power to the connected FDU and DSU units, stores data locally and transmits it to the central unit over the network with error recovery. The CX-508 is a key part of the X-Tech architecture of the 508XT.
Technical Specifications
| Manufacturer | Sercel |
| Model | CX-508 |
| Name | Concentrator |
| System compatibility | Sercel 508XT |
| Operating type | onshore (land) |
| Functions | supplies clock and power to connected FDU/DSU, stores data locally, transmits data to the central unit with error recovery |
| Local memory | 32 GB |
| Operating voltage | 10.5–15 V DC |
| Line data rate | 10, 20 and 40 Mbps |
| Maximum channels per line | 2,400 at 2 ms in real time |
| Transverse data rate | 1 Gbps |
| Maximum channels per transverse | 100,000 at 2 ms in real time |
| Power consumption | 3 W on the line only, 7 W with transverse (in acquisition) |
| Dimensions (H x W x D) | 158 x 218 x 342.4 mm |
| Weight | 3.8 kg |
| Operating temperature | −40 to +70 °C |
| Waterproofness | up to 15 m |
| Quantity in stock | 20 |
Condition and Testing
Every Sercel CX-508 we sell undergoes full inspection. Available option: Used. Before shipment, all units are checked and pass a complete inspection. Test reports are available on request.
Why Buy Sercel CX-508 from Us?
- 20 units in stock, ready to ship
- Technical support from specialists who know seismic acquisition systems
- Flexible quantities, from a single unit to the full stock
- Secure packaging and international delivery
- Competitive pricing and transparent terms
Related Sercel Equipment
We also supply Sercel 428 FDU on ST cable, Sercel 428 FDU on WPSR cable, LAUX-428, LAUL-428, LCI-428, TREP-428, TMS-428, Transverse cables, WTU-508 and other components for Sercel seismic systems. Contact us to put together a complete package for your crew.
Request a Quote
Need Sercel CX-508 units for your next project? Contact us today with your required quantity and delivery location, and we will send you a quote within 24 hours.
Frequently Asked Questions
What is the Sercel CX-508 used for?
Is the CX-508 compatible with the 508XT system?
How much data can the CX-508 store?
How many channels does it support?
What is the operating temperature?
How many units do you have in stock?
Do you offer tested units?
Do you ship internationally?
