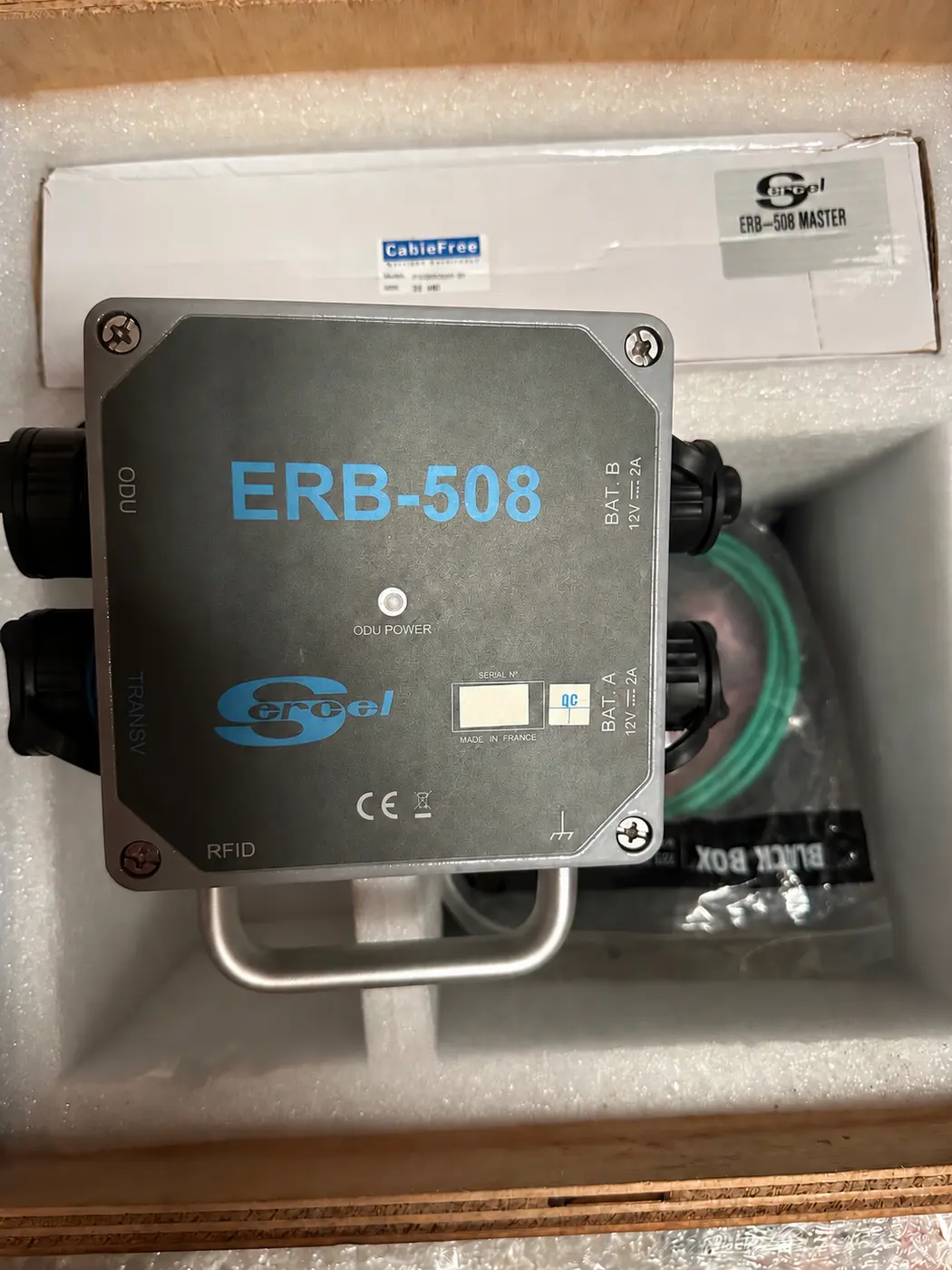

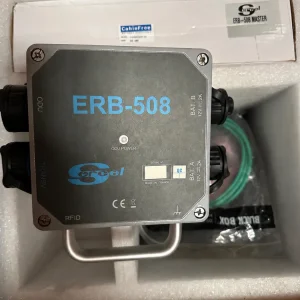

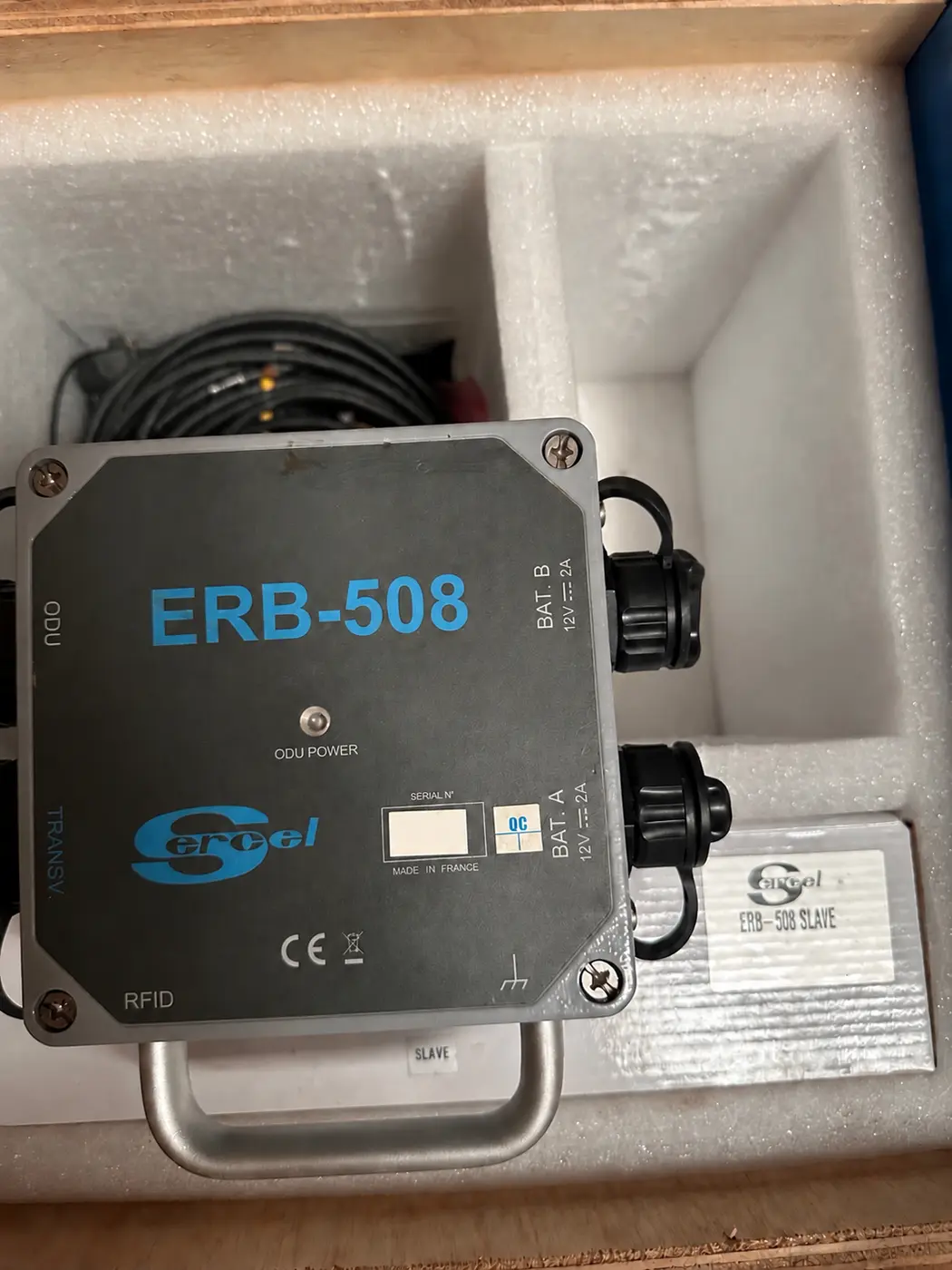

Sercel ERB-508 Ethernet Radio Bridge for 508XT Systems
- Wireless data transfer: connects CX-508 units without a line or transverse cable
- High data rate: 100 Mbps transmission rate
- Long range: up to 1 km with the included tripod, up to 15 km with a higher mast
- Rugged design: IP67 protection, operating temperature from -40 °C to +60 °C
- Simple power requirements: 12 V supply
- Full 508XT compatibility: designed for the Sercel 508XT platform
| Category | Land Equipment |
| Brand | Sercel |
| Location | Jebel Ali – Dubai - UAE |
| Price | On request |
What Is the Sercel ERB-508?
The Sercel ERB-508 is an Ethernet Radio Bridge for the Sercel 508XT seismic acquisition system. It provides wireless data transfer between CX-508 units and can be used instead of a line or transverse cable. This makes it a practical solution where rivers, roads, steep terrain or restricted access make cable laying difficult.
Technical Specifications
| Manufacturer | Sercel |
| Model | ERB-508 |
| Name | Ethernet Radio Bridge |
| Equipment type | wireless data bridge |
| System compatibility | Sercel 508XT (onshore) |
| Function | wireless data transfer between CX-508 units |
| Transmission rate | 100 Mbps |
| Range | up to 1 km with the included tripod, up to 15 km with a higher mast |
| Voltage | 12 V |
| Power consumption | 10 W on each side |
| Operating temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Protection | IP67 |
| Quantity in stock | 2 Master, 2 Slave |
Condition and Testing
Every Sercel ERB-508 we sell undergoes full inspection. Available option: Used. Before shipment, all units are checked and pass a complete inspection. Test reports are available on request.
Why Buy Sercel ERB-508 from Us?
- Master and Slave units available, ready to ship
- Technical support from specialists who know seismic acquisition systems
- Flexible quantities and combinations
- Secure packaging and international delivery
- Competitive pricing and transparent terms
Related Sercel Equipment
We also supply Sercel CX-508, WTU-508, 428 FDU, LAUX-428, LAUL-428, LCI-428, TREP-428, TMS-428, Transverse cables and other components for Sercel seismic systems. Contact us to put together a complete package for your crew.
Request a Quote
Need Sercel ERB-508 units for your next project? Contact us today with your required quantity and delivery location, and we will send you a quote within 24 hours.
Frequently Asked Questions
What is the Sercel ERB-508 used for?
Is the ERB-508 compatible with the 508XT system?
What is the range of the ERB-508?
What data rate does it support?
What are the operating conditions?
How many units do you have in stock?
Do you offer tested units?
Do you ship internationally?
