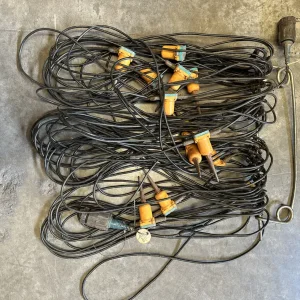

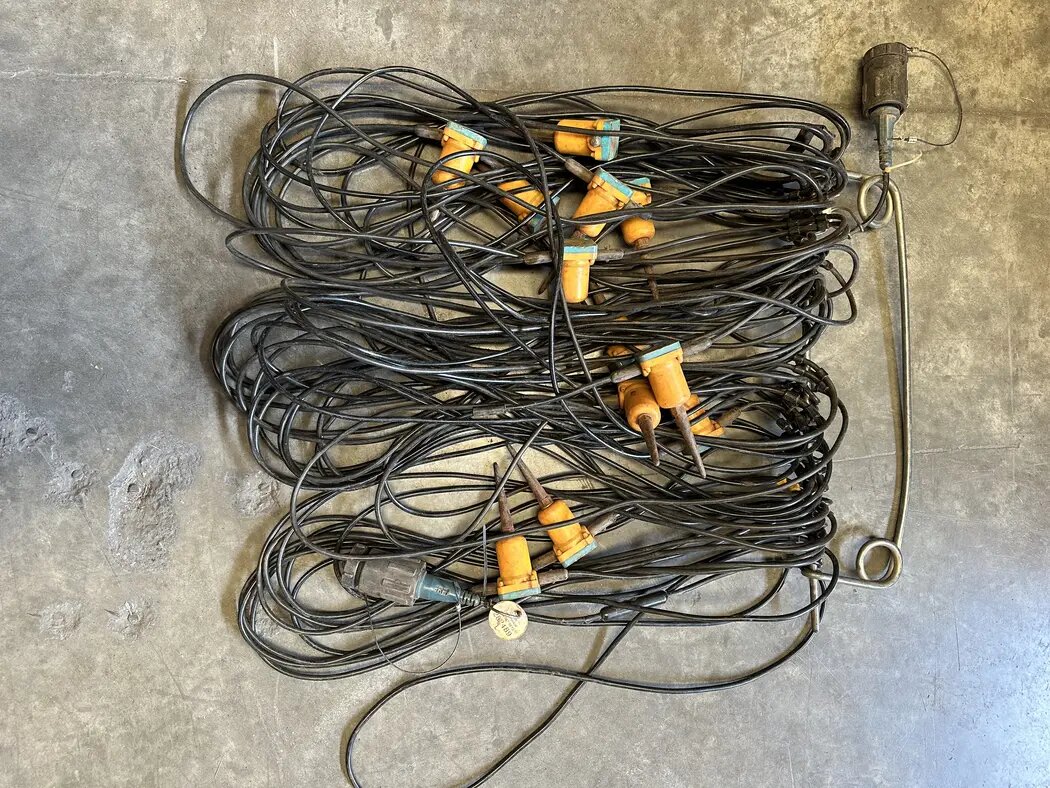

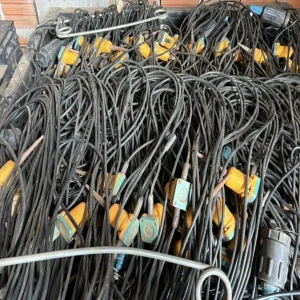

SM-24 Geophone Strings
- 12 geophones per string
- 1600 strings available, enough for large crews
- 10 Hz natural frequency
- Low distortion and high sensitivity
- Rugged, compact case for field conditions
- Ready to work after inspection
| Category | Land Equipment |
| Brand | |
| Location | Jebel Ali – Dubai - UAE |
| Price | On request |
What Is the SM-24 Geophone?
The SM-24 is a 10 Hz vertical geophone widely used in land seismic acquisition. It converts ground motion into an electrical signal with low distortion and high sensitivity, which makes it a standard sensor for 2D, 3D and 4D surveys. Geophones are connected into strings, so a crew can lay out many channels quickly and keep signal quality consistent along the line.
Technical Specifications
| Model | SM-24 |
| Equipment type | vertical geophone strings |
| Natural frequency | 10 Hz |
| Coil resistance | 375 Ω |
| Intrinsic voltage sensitivity | 28.8 V/m/s |
| Case diameter | 25.4 mm |
| Weight | 74 g |
| Operating temperature | -40 °C to +100 °C |
| Geophones per string | 12 |
| Quantity available | 1600 strings |
| Condition | Used |
Condition and Testing
Available option: Used. The equipment undergoes full inspection before shipment. Test reports are available on request.
Why Buy SM-24 Geophone Strings from Us?
- Inspected equipment, ready for field work
- Large stock available for one order
- Technical support from specialists who know seismic acquisition equipment
- Secure packaging and international delivery
- Competitive pricing and transparent terms
Related Equipment
We also supply geophone testers SMT 200 and SMT 400, Sercel 428 FDU, Sercel CX-508, WTU-508, ERB-508, Sercel 508 recording systems, Sercel Nomad 65 seismic vibrators and other equipment for land seismic crews. Contact us to put together a complete package for your project.
Request a Quote
Need SM-24 geophone strings for your next project? Contact us today with the number of strings and your delivery location, and we will send you a quote within 24 hours.
