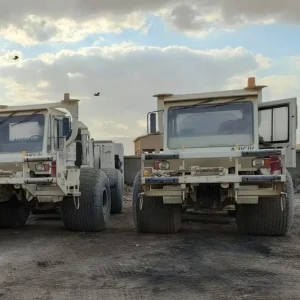

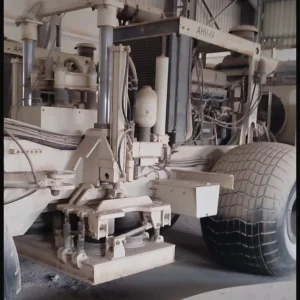

INOVA AHV-IV 362 Seismic Vibrator with Vib Pro Electronics
- Peak force of 275 kN
- 4x4 hydraulic drive with low centre of gravity
- Airbag damping system
- Vib Pro source control electronics
- 5,300–8,000 operating hours
- Models from 2006, 2007 and 2008
- 8 units available
| Category | Seismic Vibrators |
| Brand | Inova |
| Price | On request |

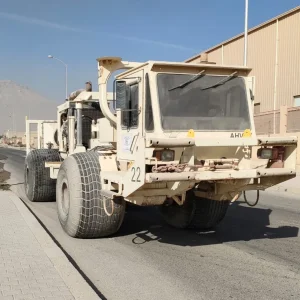

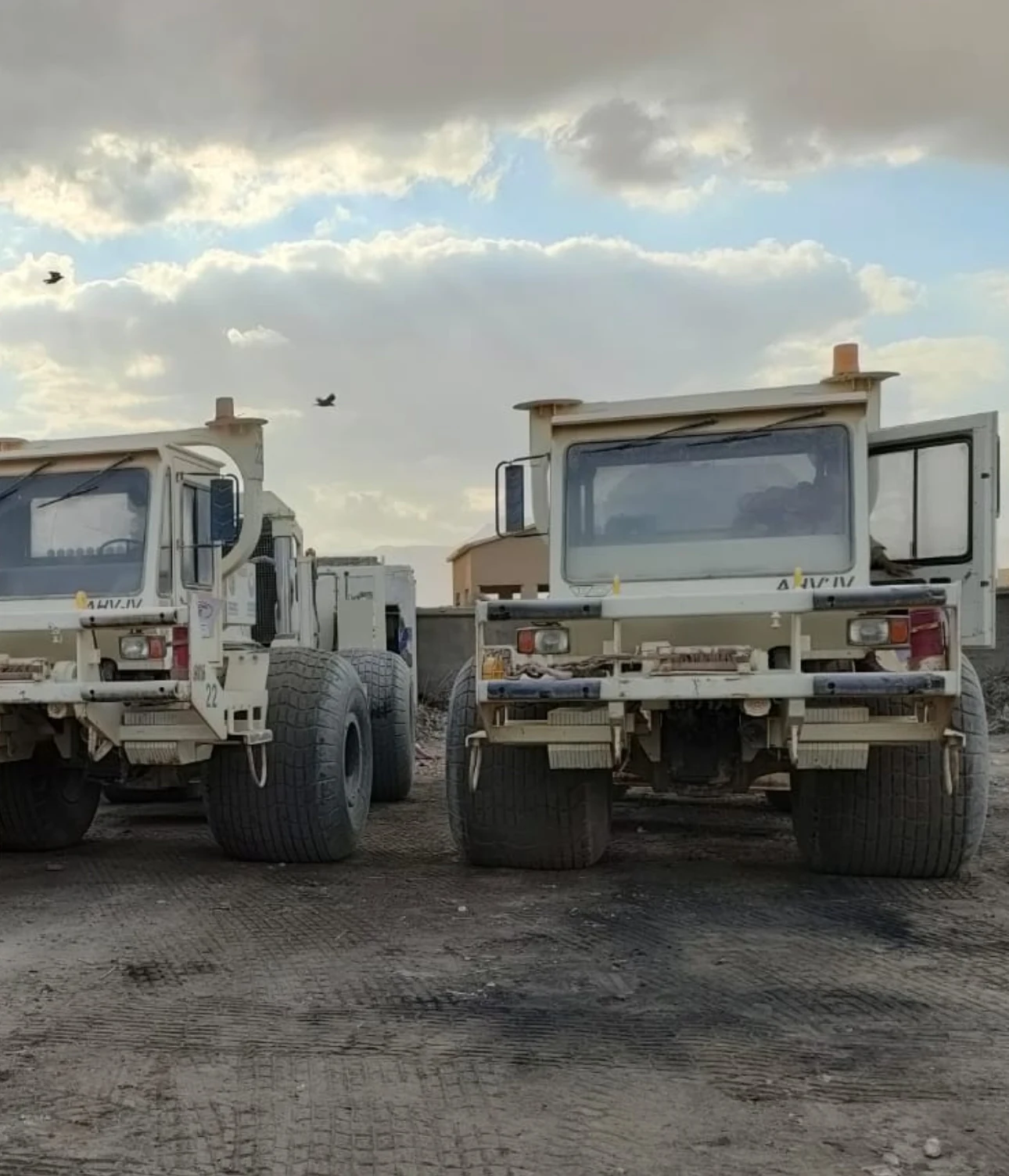

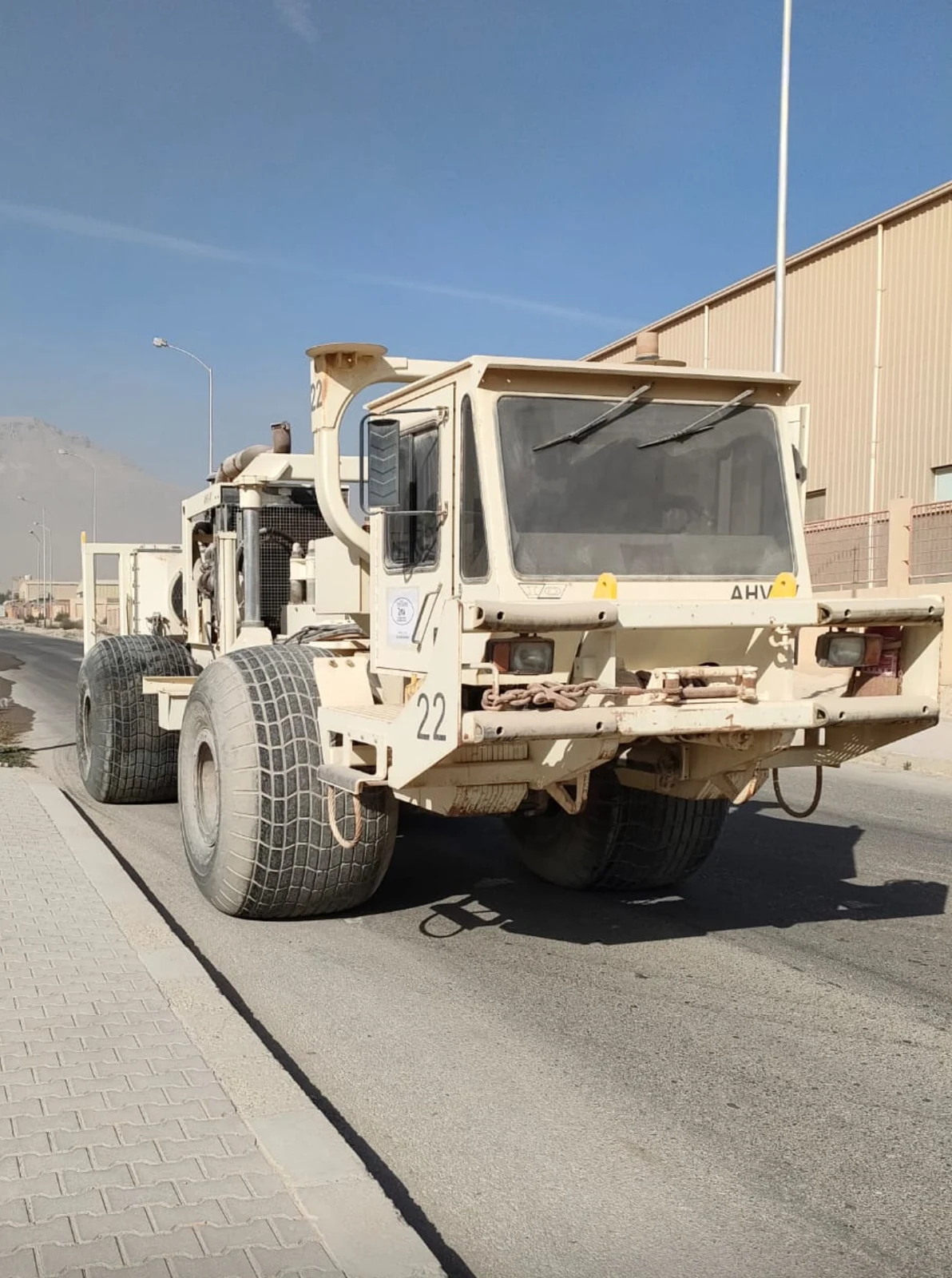

What Is the INOVA AHV-IV 362 Seismic Vibrator?

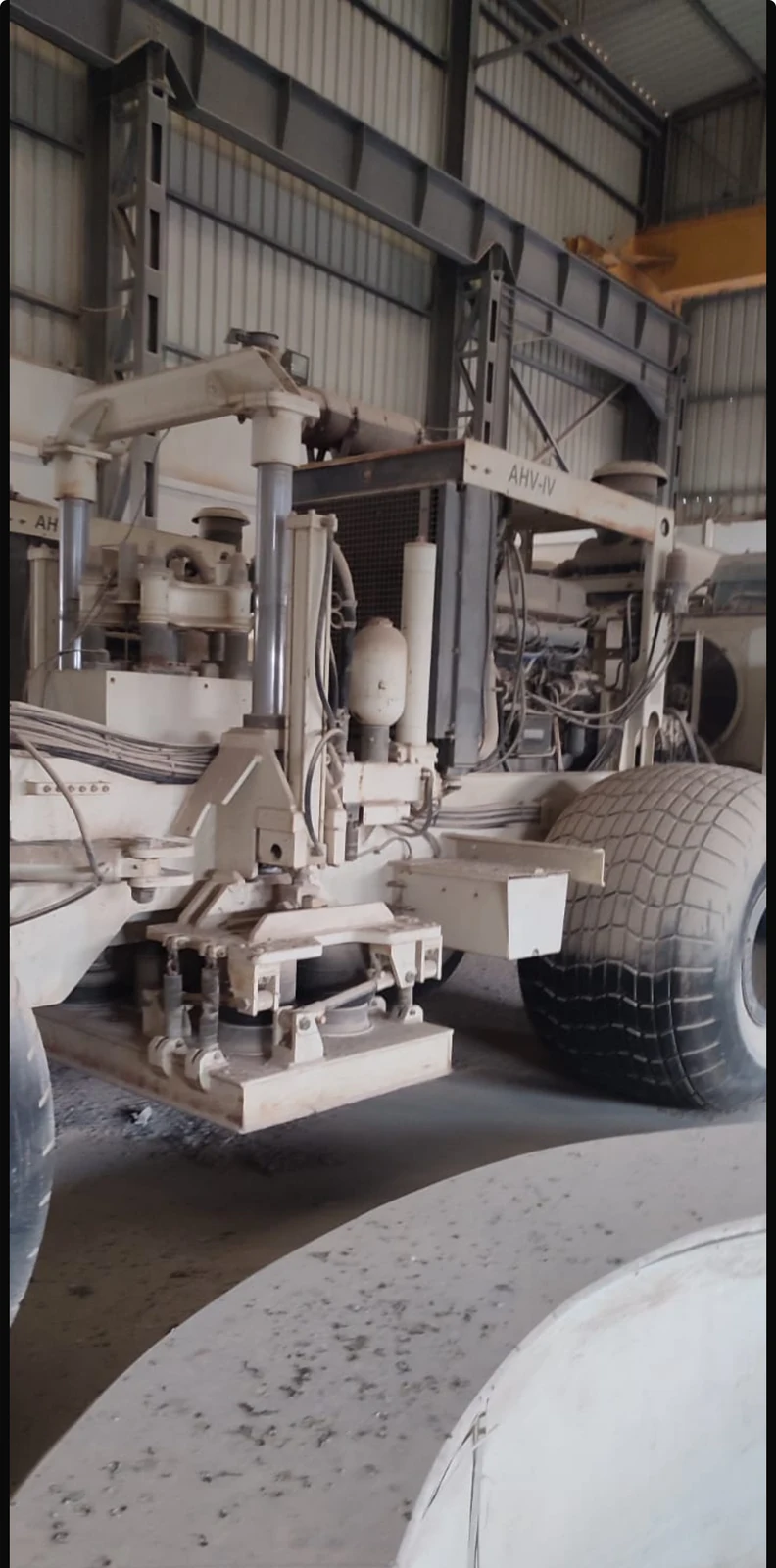

The INOVA AHV-IV 362 is a heavy articulated hydrostatic vibrator for land seismic surveys. It has a peak force of 275 kN and a patented mass structure designed for long-term mechanical reliability. The 4x4 hydraulic drive carries a low centre of gravity, which helps stability on rough terrain. These units are equipped with Vib Pro electronics for source control.
Technical Specifications
| Manufacturer | INOVA |
| Model | AHV-IV 362 |
| Equipment type | heavy seismic vibrator |
| Year of manufacture | 2006, 2007, 2008 |

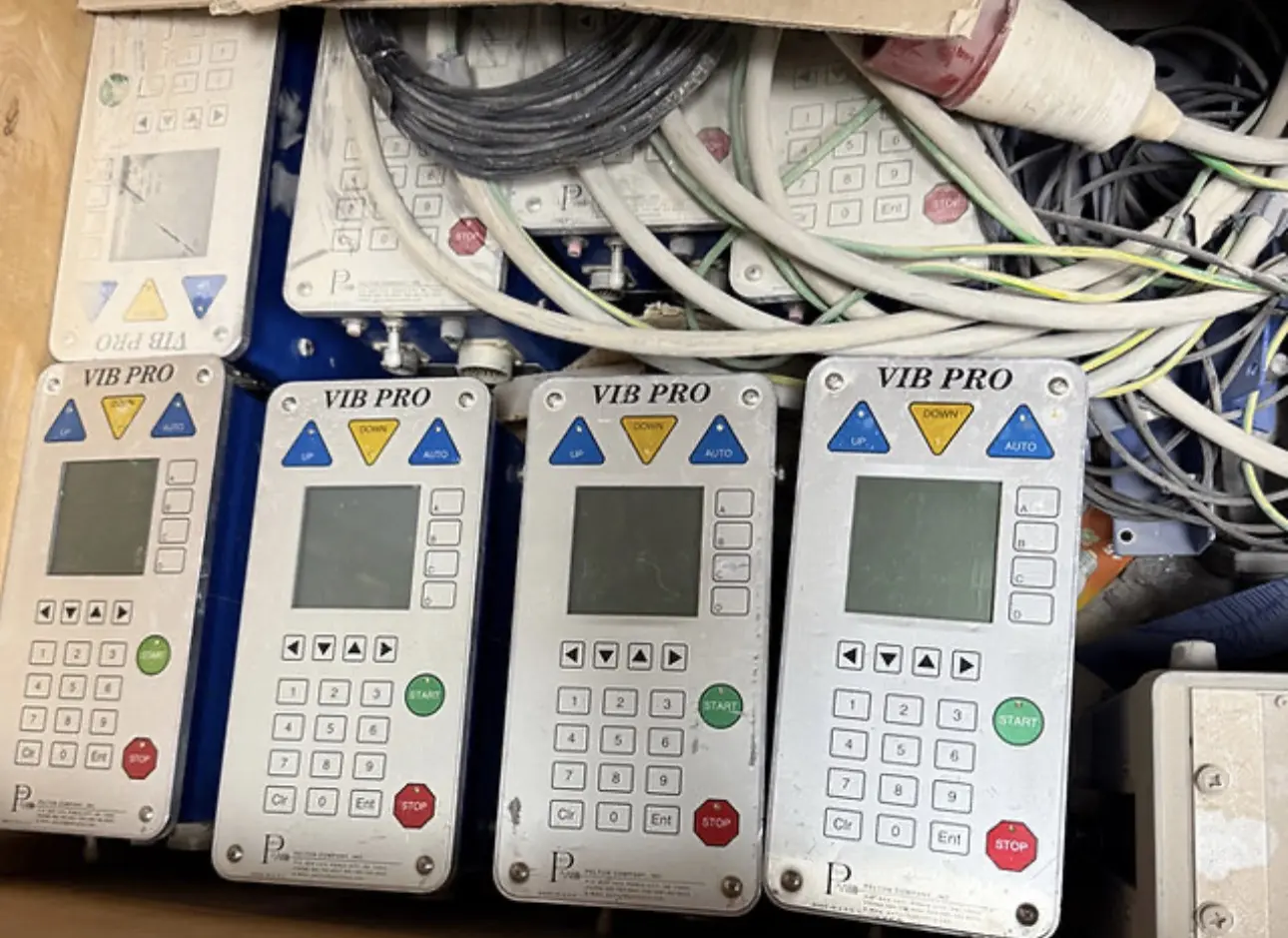

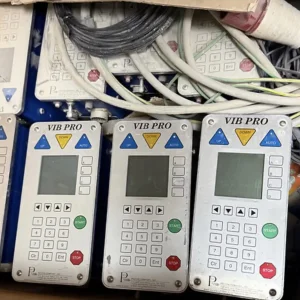

| Vibrator electronics | Vib Pro |

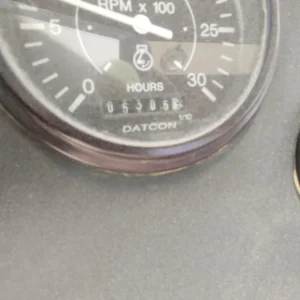

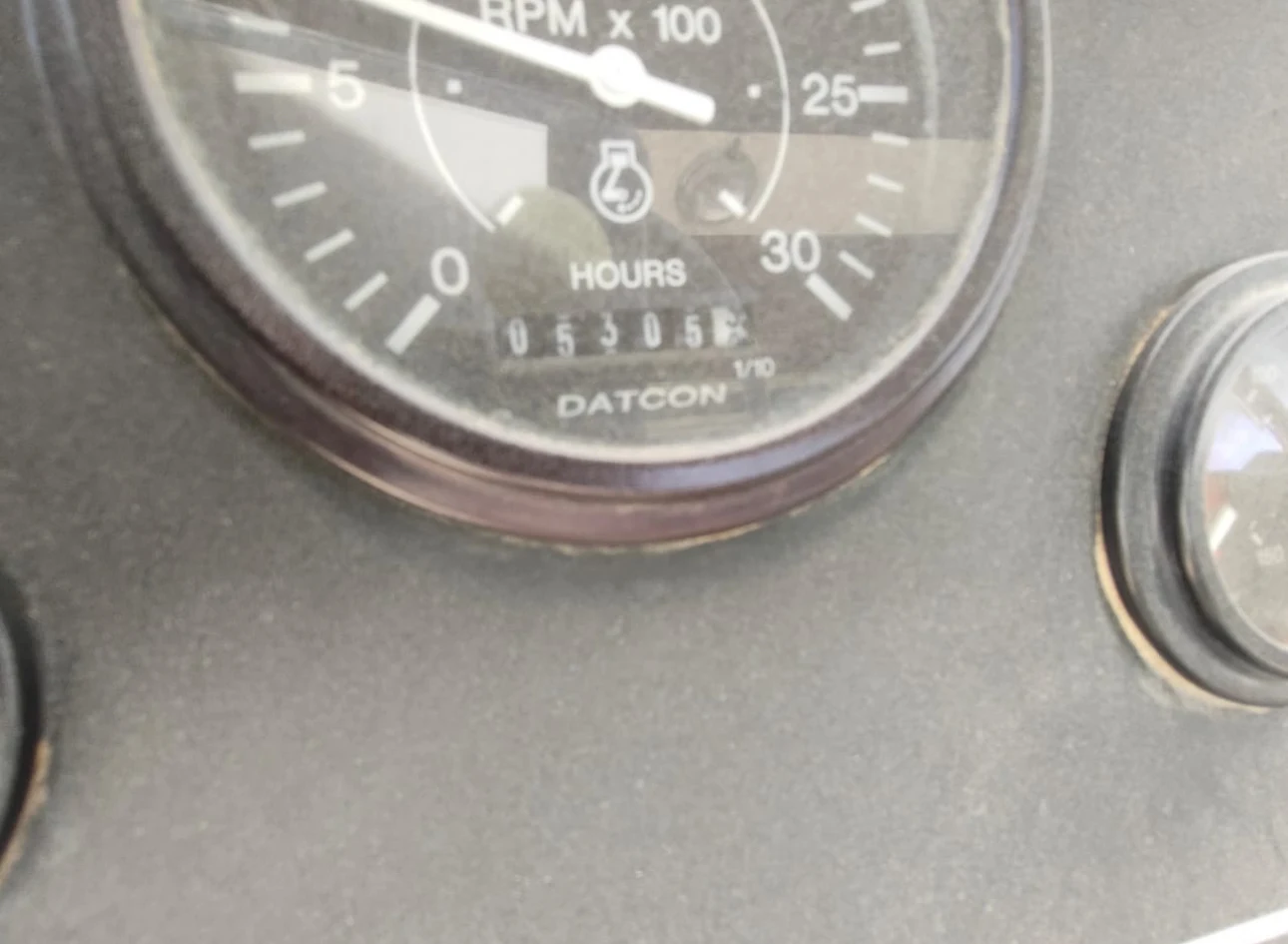

| Operating hours | 5,300–8,000 |
| Peak force | 275 kN |
| Minimum frequency | 5 Hz |
| Mass weight | 3,683 kg |
| Baseplate weight | 1,823 kg |
| Baseplate area | 2.5 m² |
| Usable stroke | 98 mm |
| Piston area | 132.9 cm² |
| Drive | 4x4, hydraulic |
| Damping system | airbag |
| Total weight | about 26,000 kg |
| Length | 10 m |
| Width | 2.9–3.4 m |
| Height | 3.1 m |
| Ground clearance | 46 cm |
| Maximum speed | 26 km/h |
| Quantity in stock | 8 units |
| Condition | Used |
Condition and Testing
Available option: Used. We inspect the vibrators, but we recommend that the buyer come and run all necessary tests personally. You are welcome to attend vibrator testing before purchase.
Why Buy INOVA AHV-IV 362 from Us?
- 8 units in stock, ready to ship
- Technical support from specialists who know seismic acquisition equipment
- Buyer is invited to attend testing before purchase
- Secure packaging and international delivery
- Competitive pricing and transparent terms
Related Equipment
We also supply Sercel Nomad 65 seismic vibrators, Sercel 428 FDU, LAUX-428, LAUL-428, LCI-428, CX-508, WTU-508, ERB-508, SM-24 geophone strings, Atlas Copco XAS 185 compressors and other equipment for land seismic crews. Contact us to put together a complete package for your project.
Request a Quote
Need the INOVA AHV-IV 362 for your next project? Contact us today with your required quantity and delivery location, and we will send you a quote within 24 hours.
Frequently Asked Questions
What is the INOVA AHV-IV 362 used for?
What electronics does it have?
What are the year and operating time?
How many vibrators do you have in stock?
Can I test the vibrators before buying?
Do you ship internationally?
