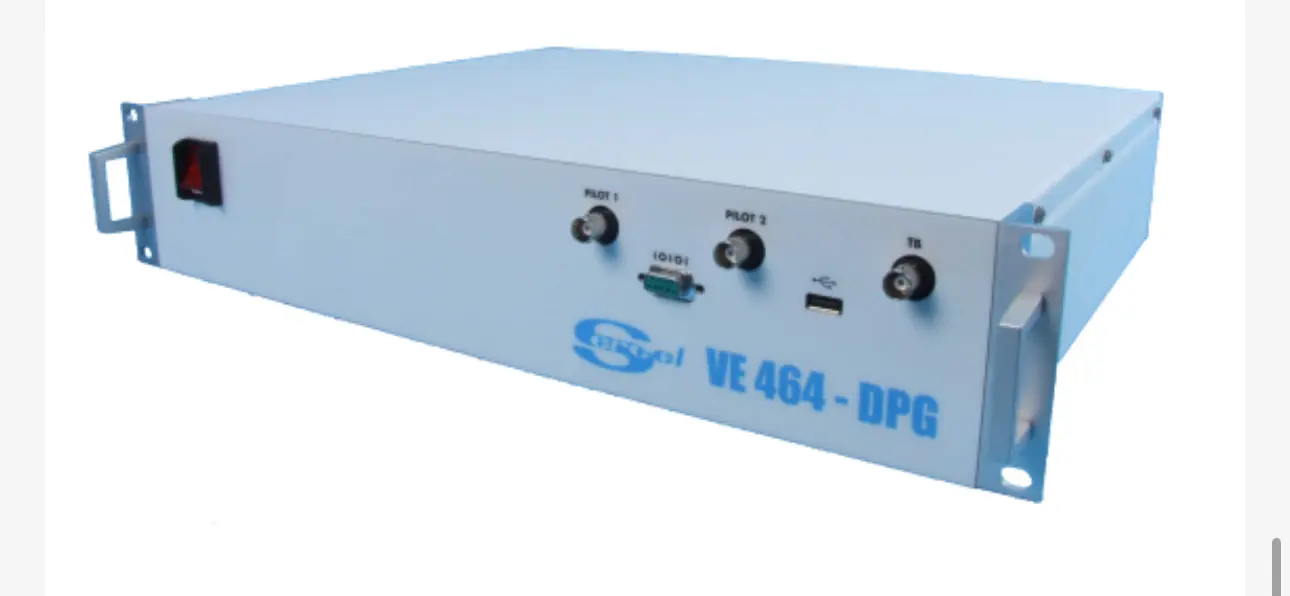

Sercel VE464 DPG (Digital Pilot Generator)
- Master control unit of the Sercel VE464 digital vibrator control system
- Ethernet link to the data acquisition system
- Full integration with Sercel 428XL and 508XT acquisition systems
- Sweep length up to 64 s, frequency range from 1 to 300 Hz
- Control of up to 100 vibrators
- GPS timing accuracy of ±10 µs
- Compact unit: 3.6 kg
| Category | Seismic Vibrators |
| Brand | Sercel |
| Location | Jebel Ali – Dubai - UAE |
| Price | On request |
What Is the Sercel VE464 DPG?
The Digital Pilot Generator (DPG) is the master control unit of the Sercel VE464 vibrator electronics system. It connects to the data acquisition system through an Ethernet link and is fully integrated with Sercel 428XL and 508XT acquisition systems. In the VE464 system, the DPG works together with the Digital Servo Drive (DSD) units installed in each vibrator. The DSD controls the vibrator ground force in real time and sends a complete set of QC attributes.
Technical Specifications
| Manufacturer | Sercel |
| Model | VE464 DPG (Digital Pilot Generator) |
| Equipment type | vibrator electronics, master control unit |
| Compatibility | Sercel 428XL, Sercel 508XT |
| Dimensions (W x D x H) | 440 x 385 x 88 mm |
| Weight | 3.6 kg |
| Power supply | 110 V or 220 V |
| Power consumption | 30 W |
| Operating temperature | 0 °C to 45 °C |
| Storage temperature | -40 °C to 70 °C |
| System signal length | up to 64 s |
| System frequency range | 1–300 Hz |
| Maximum number of vibrators | 100 |
| Quantity in stock | 1 unit |
| Condition | Used |
Condition and Testing
Available option: Used. The unit undergoes full inspection before shipment. Test reports are available on request.
Why Buy Sercel VE464 DPG from Us?
- 1 unit in stock, ready to ship
- Technical support from specialists who know seismic acquisition equipment
- Secure packaging and international delivery
- Competitive pricing and transparent terms
Related Equipment
We also supply Sercel Nomad 65 seismic vibrators with VE464 DSD electronics, INOVA vibrators, Sercel 428 FDU, LAUX-428, LAUL-428, LCI-428, CX-508, WTU-508, ERB-508, SM-24 geophone strings and other equipment for land seismic crews. Contact us to put together a complete package for your project.
Request a Quote
Need the Sercel VE464 DPG for your next project? Contact us today with your required quantity and delivery location, and we will send you a quote within 24 hours.
