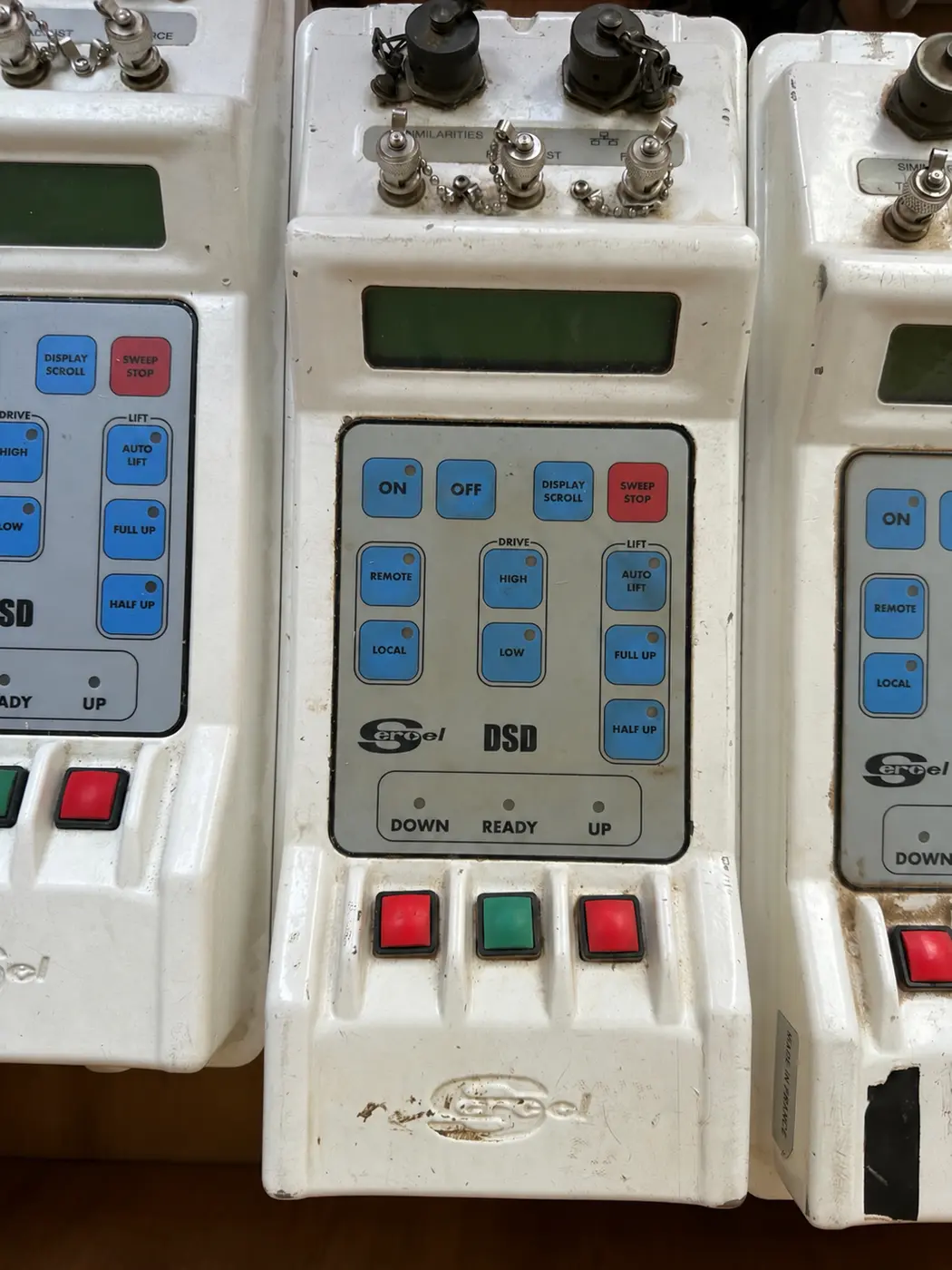

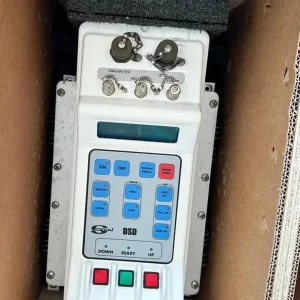

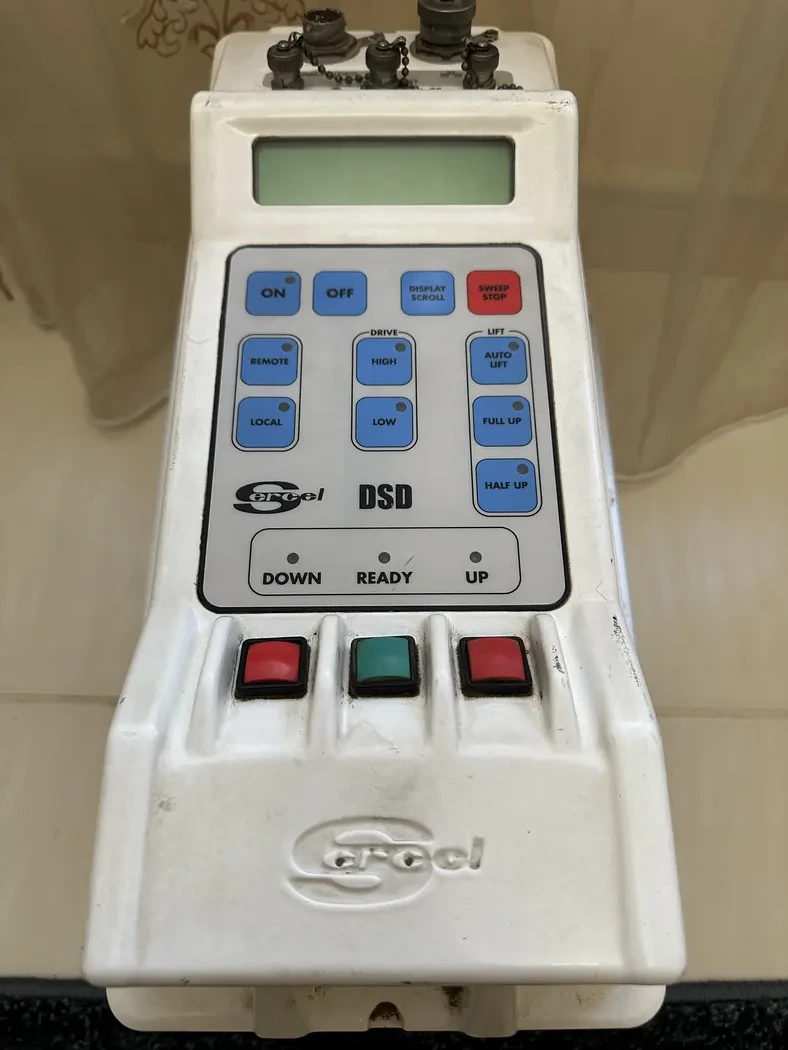

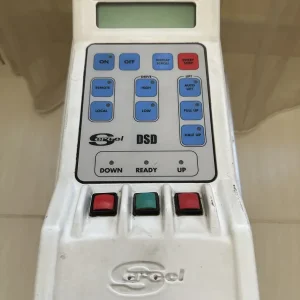

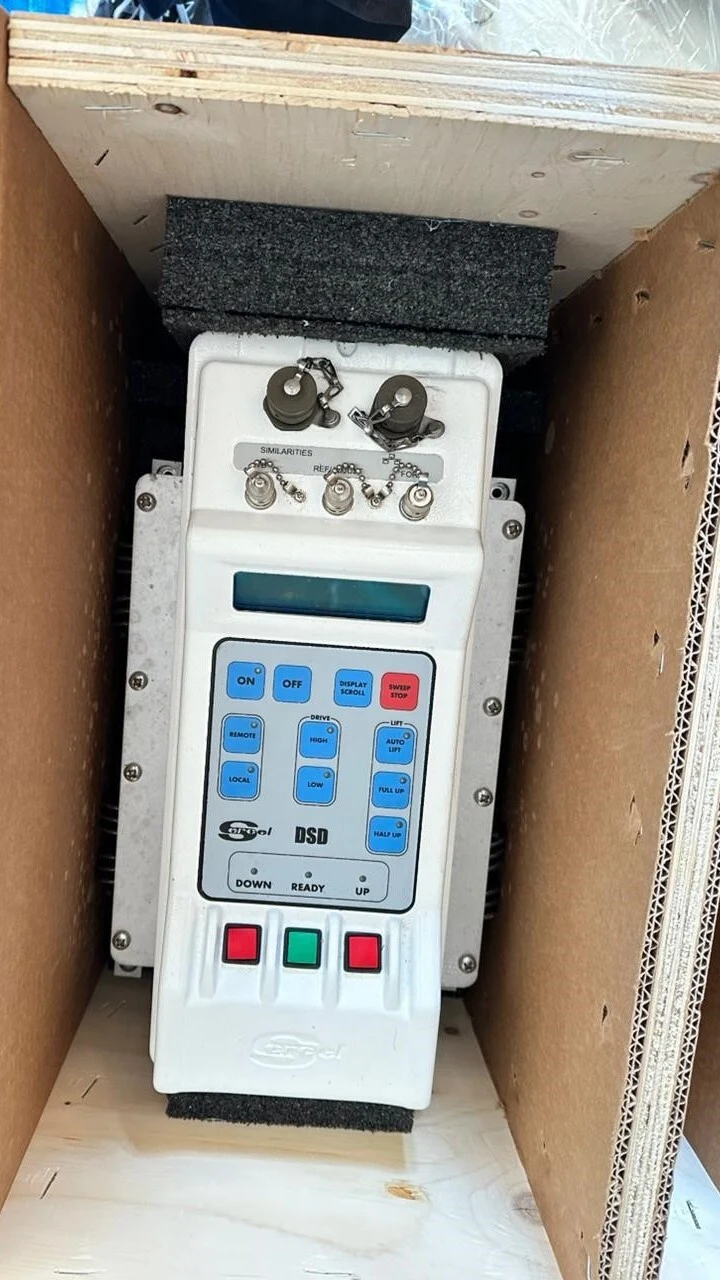

Sercel VE464 DSD (Digital Servo Drive)
- Real-time control of vibrator ground force
- Complete set of QC attributes computed and transmitted for the QC database
- Maintenance modes to check vibrator hardware and GPS performance
- Can be used as a slave source controller, or as a standalone unit controlling both a vibrator and an acquisition system (for example, for borehole seismic)
- Can be equipped with an external Tablet PC as a QC terminal and a monitor for the GPS guidance option
- Wi-Fi connection between DSDs through the Tablet PC keeps the set-up consistent across the fleet
- Used with Sercel 428XL and 508XT acquisition systems
| Category | Seismic Vibrators |
| Brand | Sercel |
| Price | On request |
What Is the Sercel VE464 DSD?
The Digital Servo Drive (DSD) is the vibrator-mounted unit of the Sercel VE464 vibrator electronics system. Installed in each vibrator, the DSD performs real-time control of the vibrator ground force. It also computes and transmits a complete set of attributes for a QC database. Maintenance modes make it easy to check the performance of the vibrator hardware and the GPS system. The DSD works together with the VE464 DPG (Digital Pilot Generator), the master control unit of the system, and the VE464 system is used with Sercel 428XL and 508XT acquisition systems.
Technical Specifications
| Manufacturer | Sercel |
| Model | VE464 DSD (Digital Servo Drive) |
| Equipment type | vibrator electronics, vibrator-mounted control unit |
| Compatibility | Sercel 428XL, Sercel 508XT |
| Dimensions (W x D x H) | 168 x 427 x 283 mm |
| Weight (including mounting parts) | 11 kg |
| Power supply | 12 V |
| Power consumption | 80 W |
| Operating temperature | 0 °C to 45 °C |
| Storage temperature | -40 °C to 70 °C |
| System signal length | up to 64 s |
| System frequency range | 1–300 Hz |
| Maximum number of vibrators | 100 |
| Quantity in stock | 5 units |
| Condition | Used |
Condition and Testing
Available option: Used. The units undergo full inspection before shipment. Test reports are available on request.
Why Buy Sercel VE464 DSD from Us?
- 5 units in stock, ready to ship
- Technical support from specialists who know seismic acquisition equipment
- Secure packaging and international delivery
- Competitive pricing and transparent terms
Related Equipment
We also supply Sercel VE464 DPG (Digital Pilot Generator), Sercel Nomad 65 seismic vibrators, INOVA vibrators, Sercel 428 FDU, LAUX-428, LAUL-428, LCI-428, CX-508, WTU-508, ERB-508, SM-24 geophone strings and other equipment for land seismic crews. Contact us to put together a complete package for your project.
