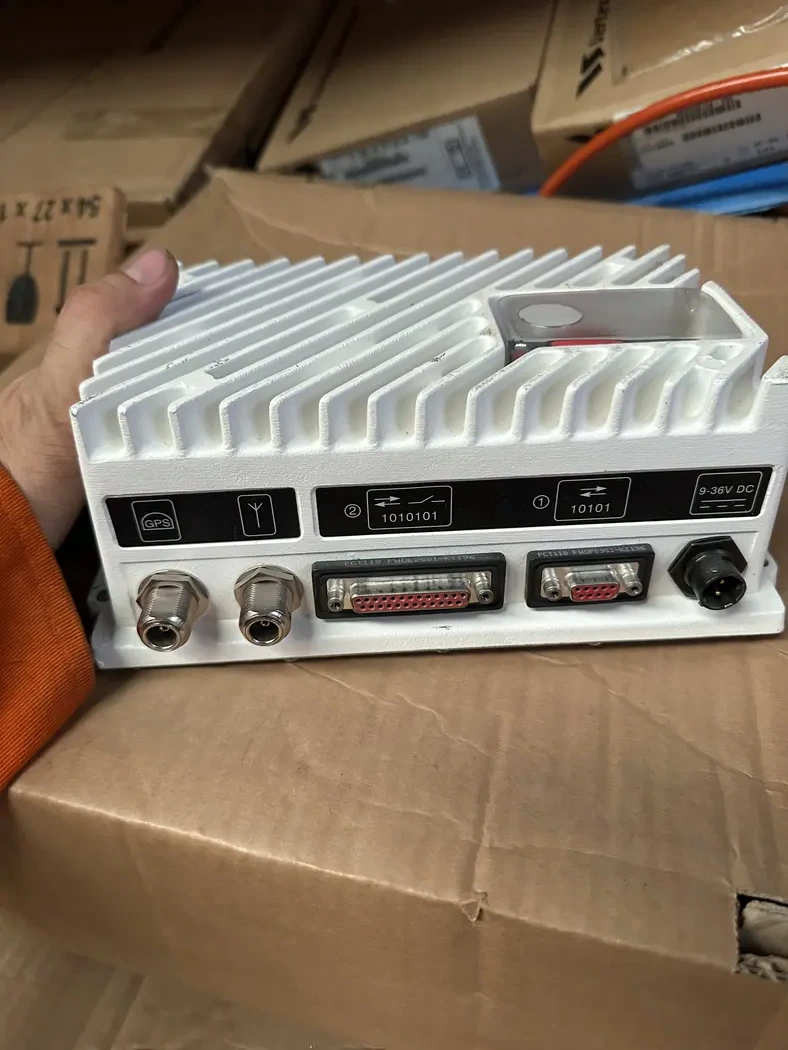

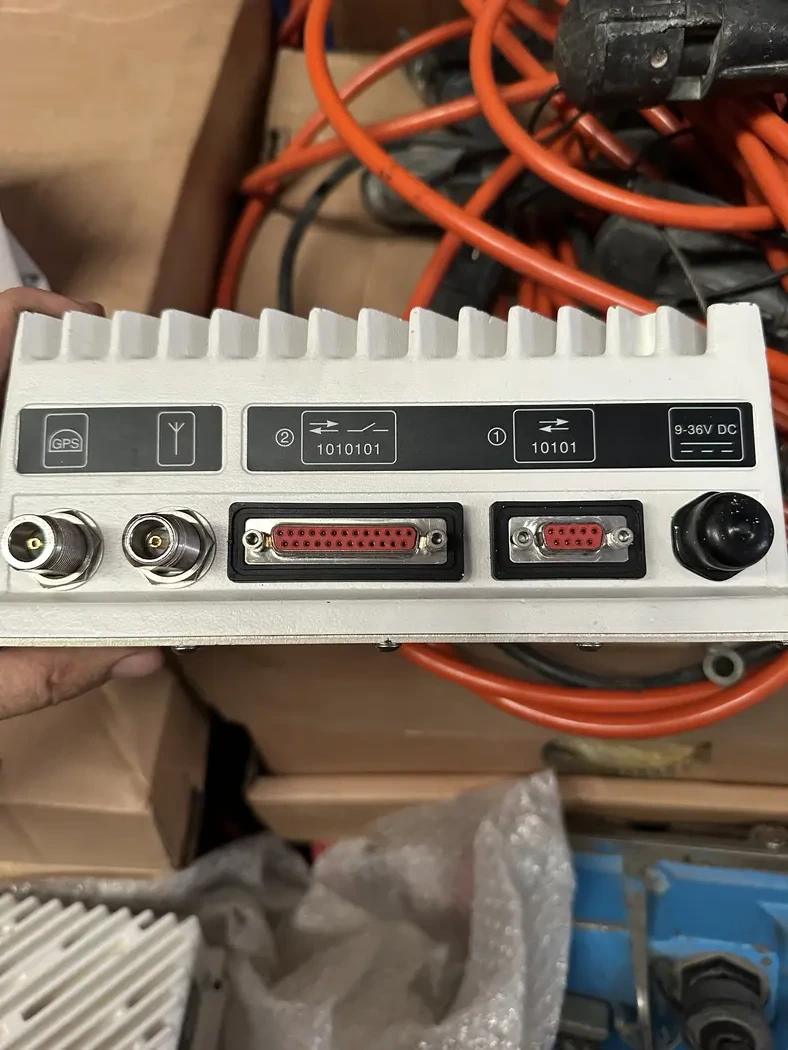

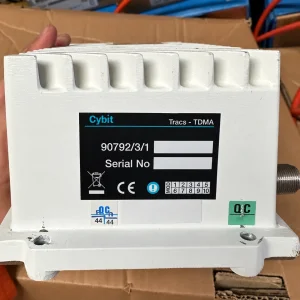

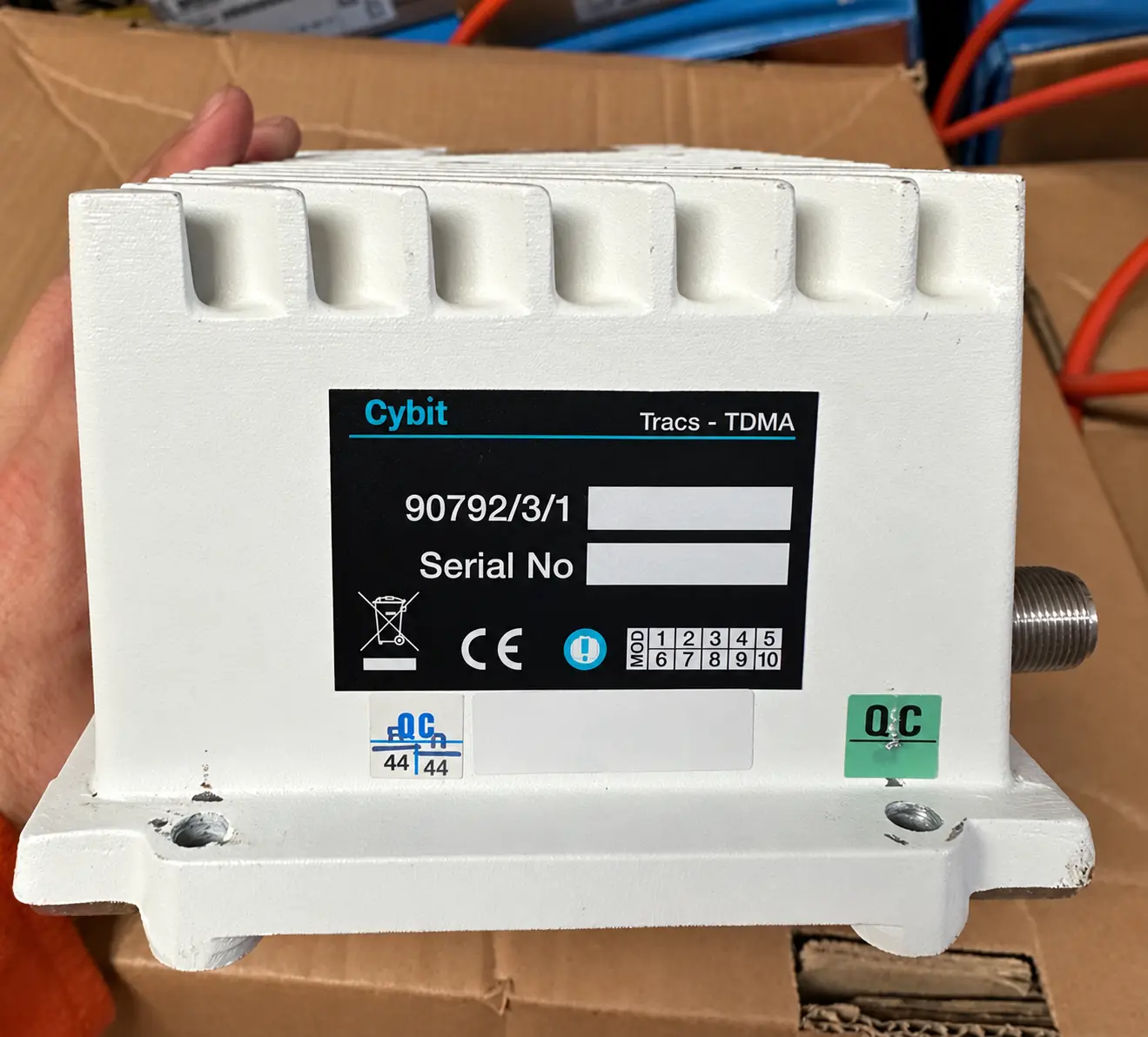

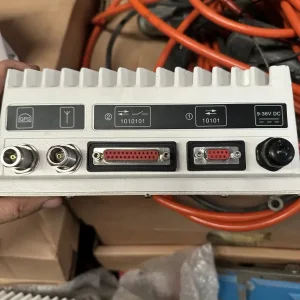

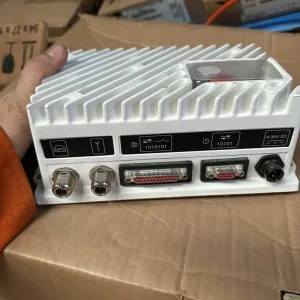

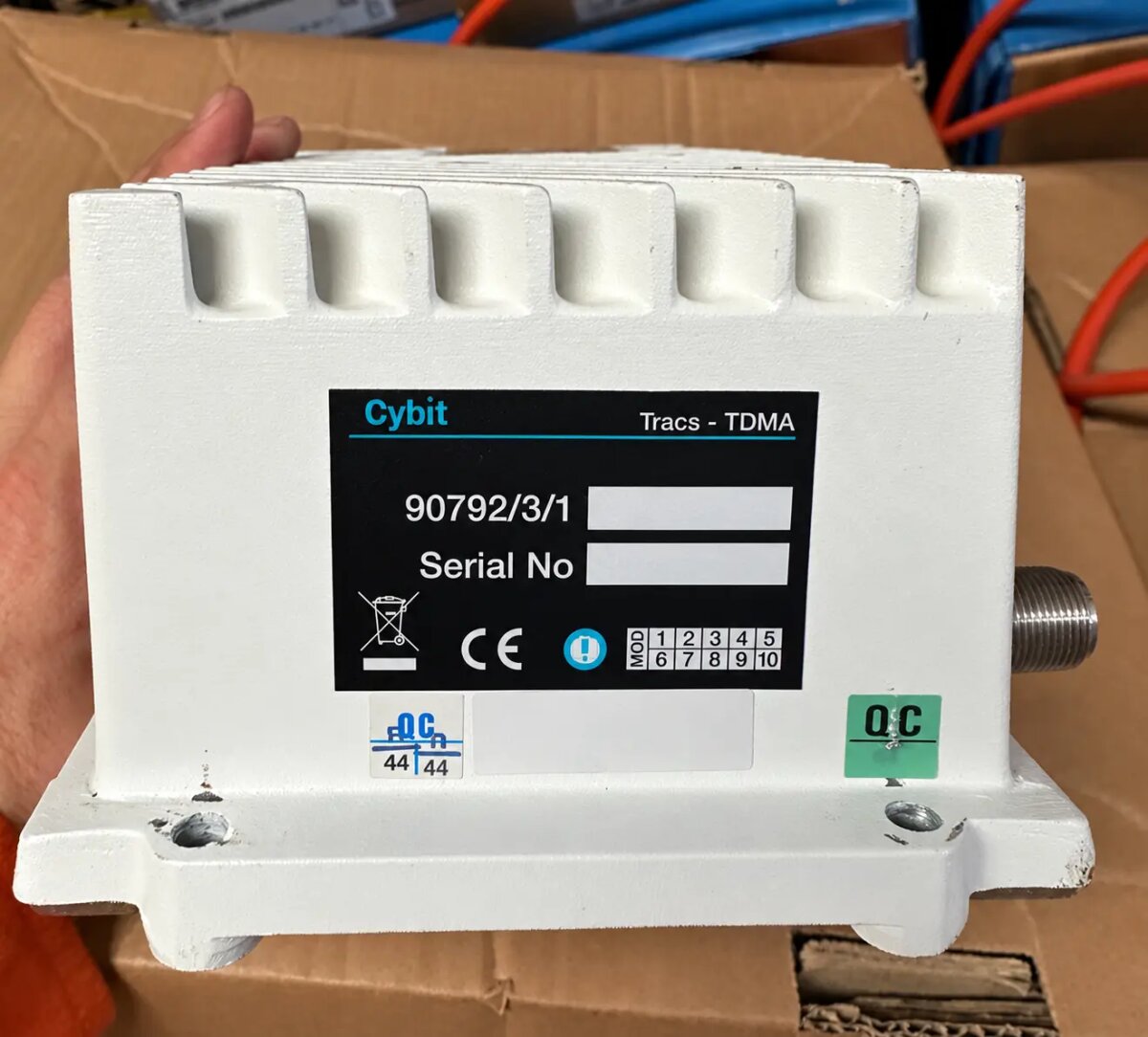

Tracs TDMA Radio Datalink for VE464
- TDMA channel access: the DPG and all DSDs share one radio frequency channel
- 16 time-slots per second on a 25 kHz channel at 12,000 baud
- A second Tracs TDMA unit on the DPG, with a different radio frequency, provides more time-slots
- Maximum transmitted power of 10 W; a 50 W booster can be used
- Built-in GPS receiver for a highly accurate clock and precise sweep start times
- GPS position for navigation-driven shooting and the vibrator Guidance function
- The DSD supplies its own clock, so the radio keeps working without GPS satellite reception
- Differential GPS: the unit attached to the DPG can serve as a DGPS reference station
- RTK option for centimetric accuracy
- Sercel variant with Repeater mode and DPG-DSD mode
| Category | Seismic Vibrators |
| Brand | Sercel |
| Location | Jebel Ali – Dubai - UAE |
| Price | On request |
What Is the Tracs TDMA?
The Tracs TDMA is the radio datalink of the Sercel VE464 vibrator electronics system. It connects the DPG (Digital Pilot Generator) with the DSD (Digital Servo Drive) units installed in the vibrators. Using Time Division Multiple Access (TDMA), several users share the same frequency channel, and each one transmits in its own time-slot. Messages between the DPG and all the DSDs are virtually simultaneous, unlike with a conventional radio, which may delay messages by a few seconds. The Sercel variant of the Tracs TDMA is specifically tuned to meet Sercel requirements and includes a built-in GPS receiver.
Technical Specifications
| Manufacturer | Sercel |
| Model | Tracs TDMA radio datalink (Sercel variant) |
| Equipment type | radio unit with built-in GPS receiver |
| Used with | Sercel VE464 (DPG and DSD) |
| Channel width | 25 kHz |
| Baud rate | 12,000 |
| Time-slots | 16 per second (25 kHz channel) |
| Maximum transmitted power | 10 W |
| Booster option | 50 W |
| Special modes | Repeater mode, DPG-DSD mode |
| Quantity in stock | 3 units |
| Condition | Used |
Condition and Testing
Available option: Used. The units undergo full inspection before shipment. Test reports are available on request.
Why Buy Tracs TDMA from Us?
- 3 units in stock, ready to ship
- Technical support from specialists who know seismic acquisition equipment
- Secure packaging and international delivery
- Competitive pricing and transparent terms
Related Equipment
We also supply Sercel VE464 DPG (Digital Pilot Generator), Sercel VE464 DSD (Digital Servo Drive), Sercel Nomad 65 seismic vibrators, INOVA vibrators, Sercel 428 FDU, LAUX-428, LAUL-428, LCI-428, CX-508, WTU-508, ERB-508, SM-24 geophone strings and other equipment for land seismic crews. Contact us to put together a complete package for your project.
Request a Quote
Need the Tracs TDMA for your next project? Contact us today with your required quantity and delivery location, and we will send you a quote within 24 hours.
